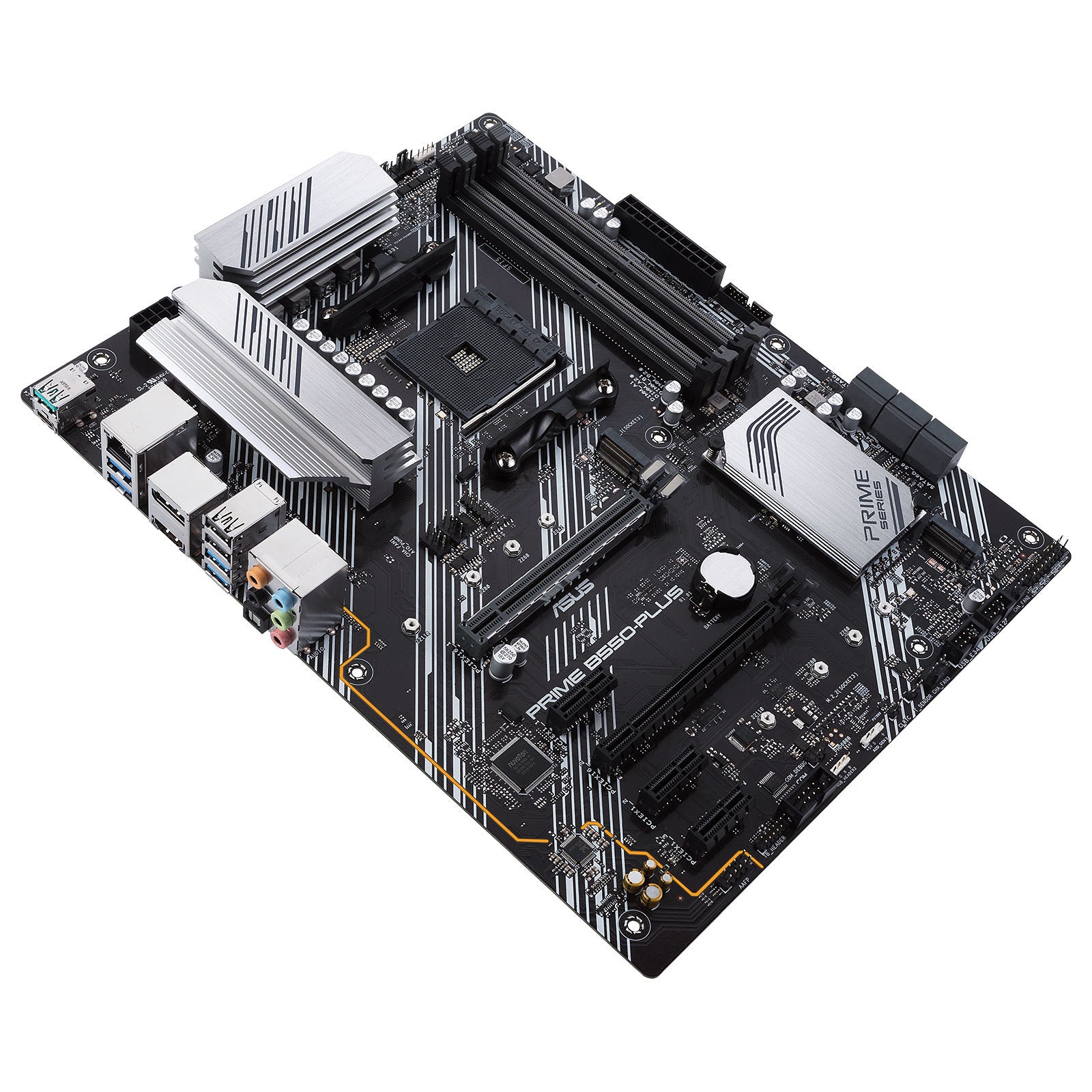

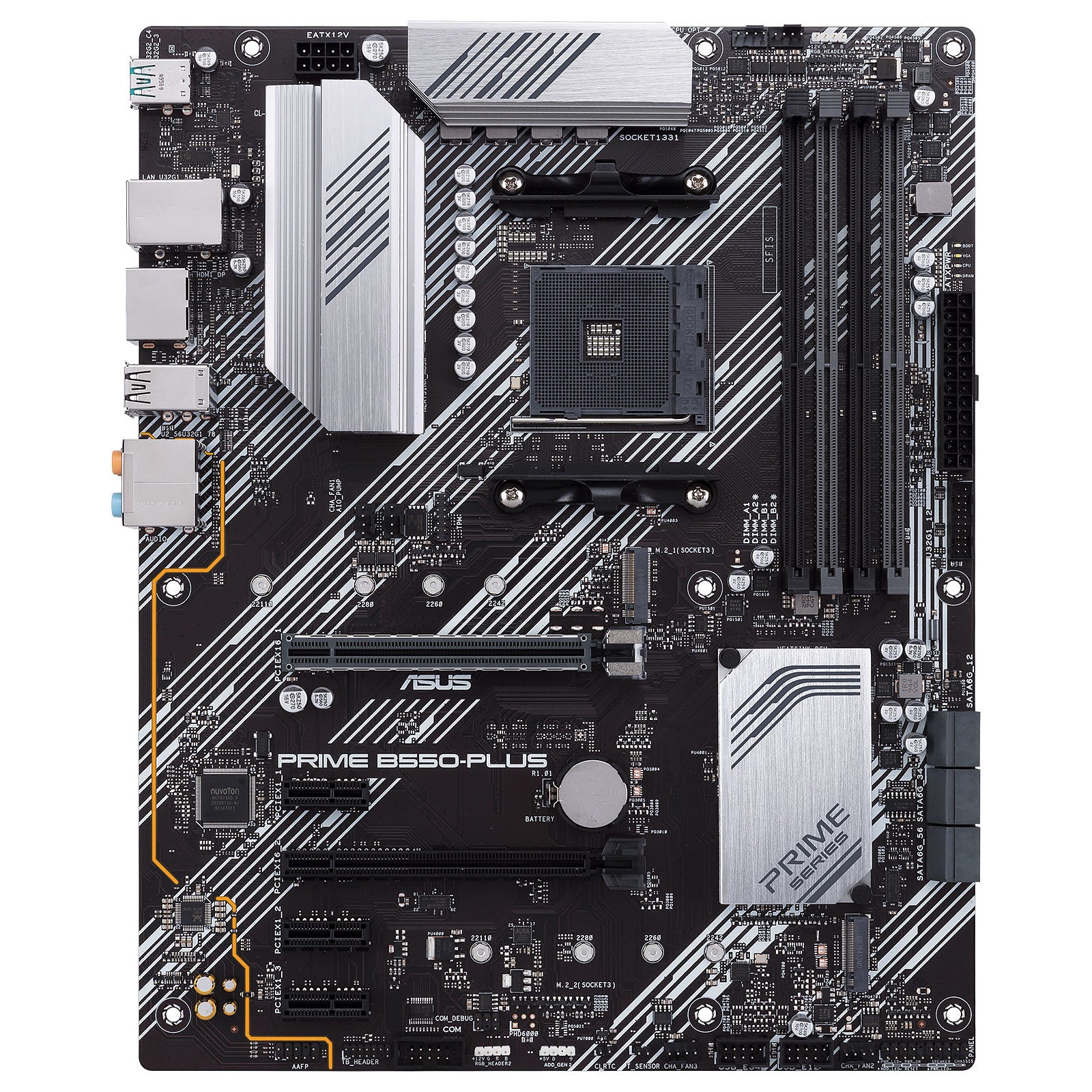

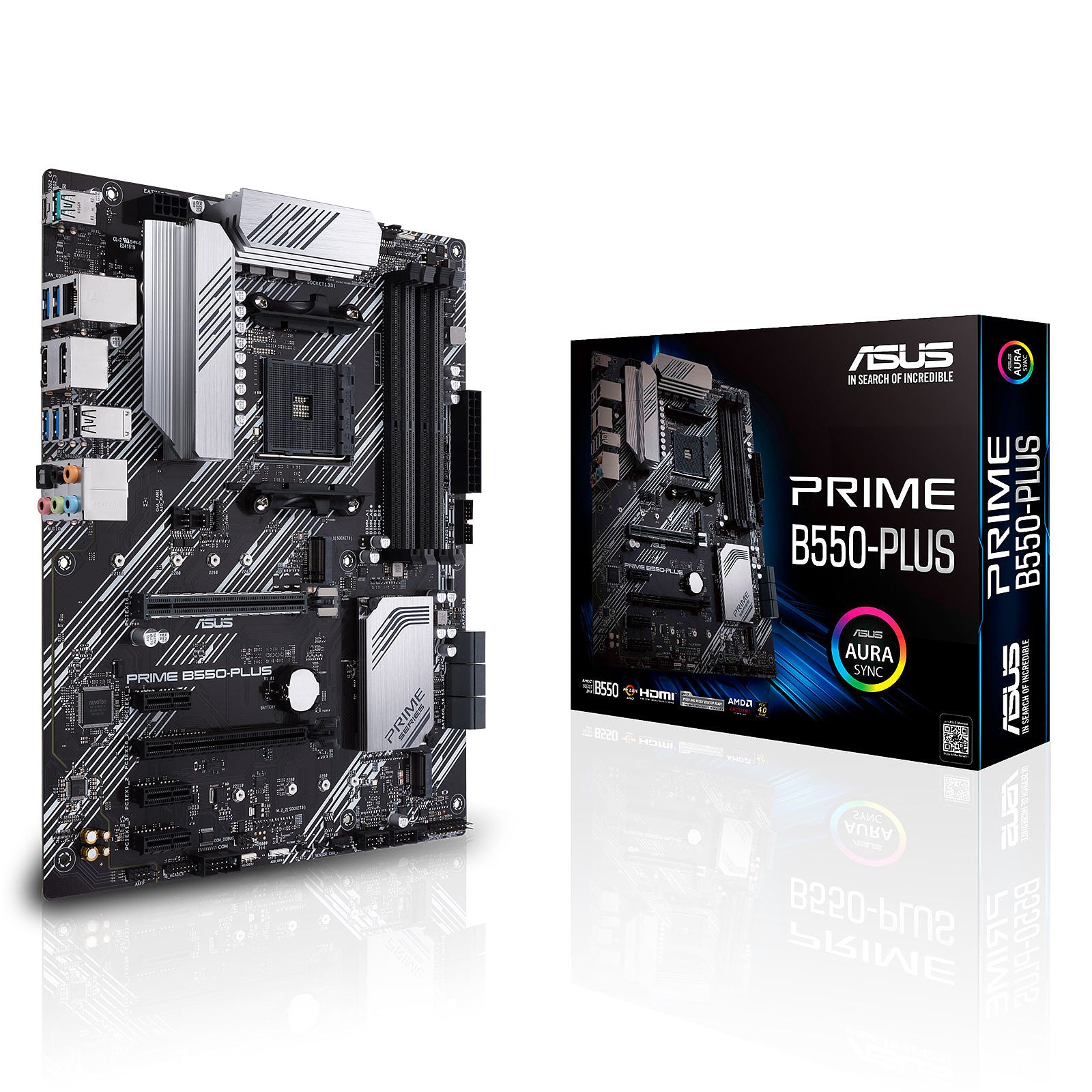

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support
Highlights:
- Ready for 3rd Gen AMD Ryzen™ Processors

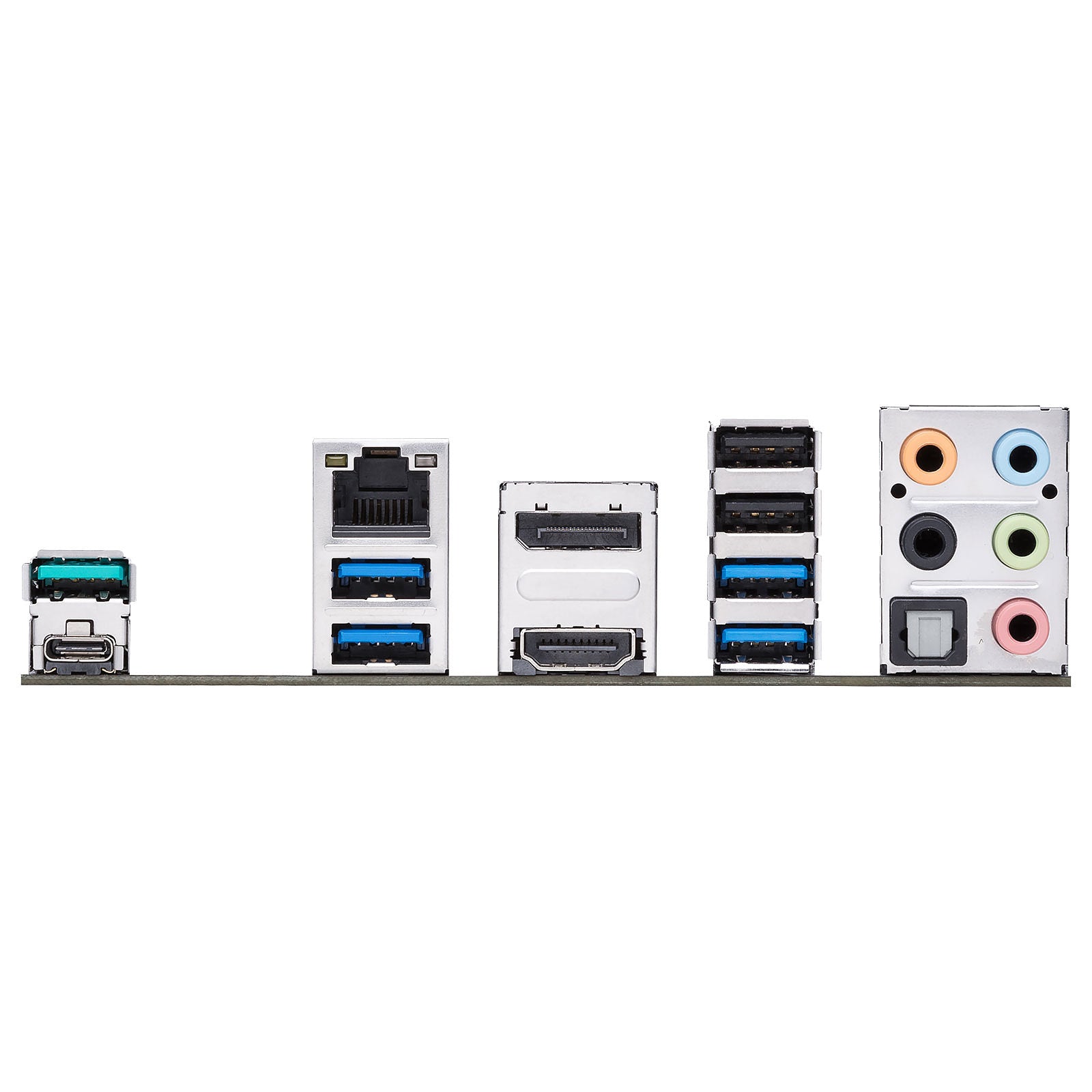

- Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
- VRM heatsinks, PCH heatsink, and Fan Xpert 4
- Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
PRIME
ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity.
All-around Energy Efficiency
With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.
Flexible Air- and Liquid-Cooling Controls
Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AiO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Cool to the Core
Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Specification:
- Number of Memory Slots: 4
- Multi GPU Supported: CrossFireX
- Gigabit Ethernet: Yes
- Number of SATA Interfaces: 6
- Number of PCI Express x1 Slots: 3
- Onboard Video: CPU Dependent Video
- RAID Supported: Yes
- Number of Total Expansion Slots: 5
- Number of PCI Express x16 Slots: 2
- HDMI: Yes
- DisplayPort: Yes
- Total Number of USB Ports: 8
- Total Number of Onboard USB Ports: 6
- Total Number of PCI Express Slots: 5
- Memory Form Factor: DIMM, UDIMM
- Number of M.2 Interfaces: 2
- Number of USB 3.2 Ports: 6
- Number of Onboard USB 3.2 Ports: 2
- Memory Technology: DDR4 SDRAM
- Processor Socket: Socket AM4
- Form Factor: ATX
- Processor Supported: Ryzen , Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO
- Total Processor Supported: 1
- Controller Type: Serial ATA/600
- Maximum Memory Supported: 128 GB
- Environmentally Friendly: Yes
- Environmental Certification: RoHS
- Audio Channels: 7.1
- Number of Network (RJ-45) Ports: 1
- Number of USB 2.0 Ports: 2
- Number of Onboard USB 2.0 Ports: 4
- Memory Speed Supported: 4800 MHz, 4600 MHz, 4400 MHz, 4266 MHz, 4133 MHz, 4000 MHz, 3866 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3333 MHz, 3200 MHz, 3000 MHz,
- 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz
- Product Line: Prime
- RAID Levels: 0,1,10
- S / PDIF: Yes
