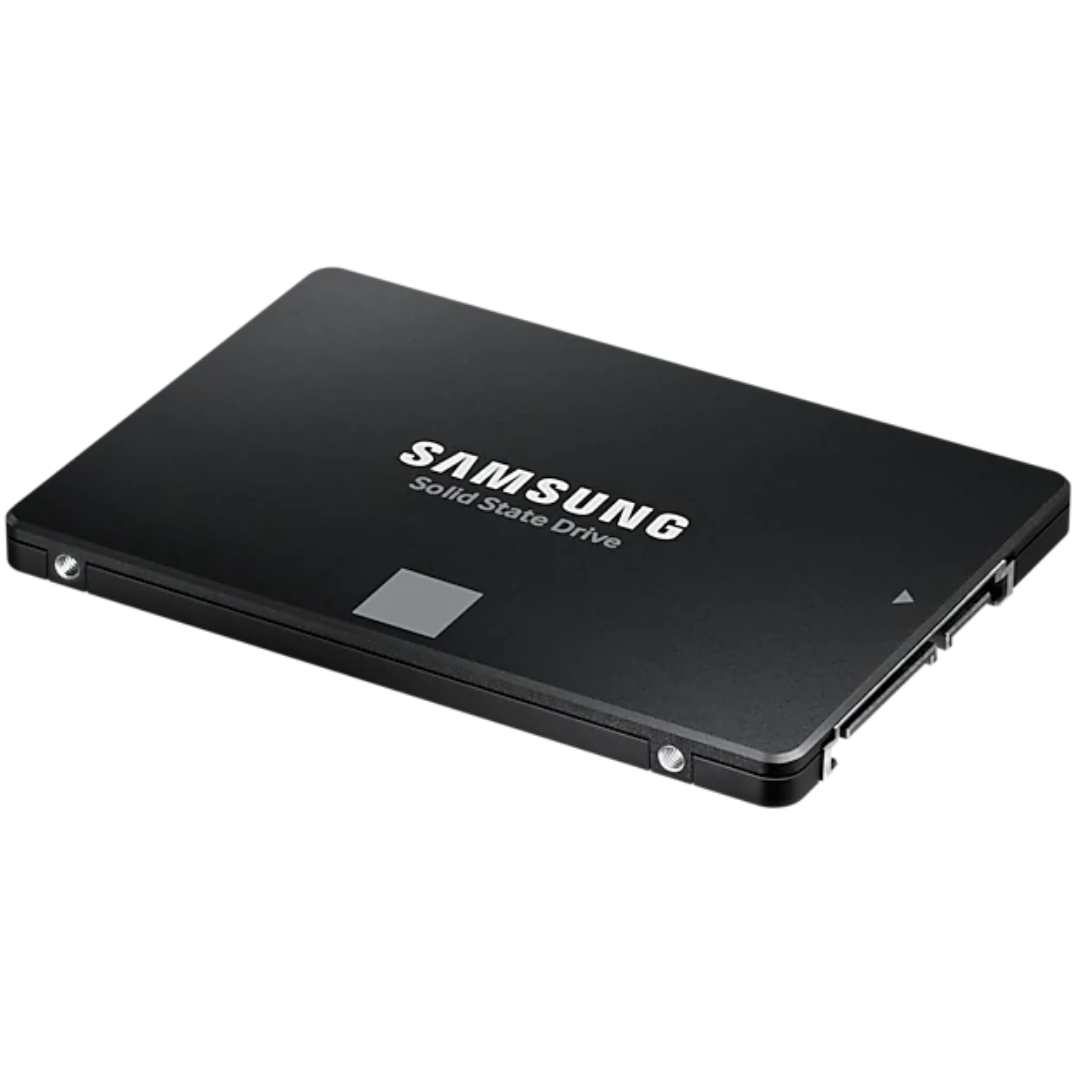

The latest model of Samsung's SSD series has finally arrived. The 870 EVO builds upon Samsung’s pioneering SSD technology, boasting upgraded performance, reliability, and compatibility to suit the needs of anyone from content creators, IT professionals, to everyday users.
Excellence in performance
The 870 EVO achieves the maximum SATA interface limit of 560/530 MB/s sequential speeds. Everyday users can now enjoy professional-level SSD performance. Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.
Leading reliability
Providing up to 2,400 TBW under a 5year limited warranty, the 870 EVO meets leading standards of reliability
Samsung Magician software
Make your drive work like magic. The new and improved Samsung Magician 6 software will keep your SSD in check. You can easily manage your drive with a wide range of useful tools to keep up with the latest updates, monitor the drive's health and status, or even enhance its performance.
Full Specifications
General Feature
- Application: Client PCs
- Form Factor: 2.5 inch
- Dimension (WxHxD): 100 X 69.85 X 6.8 (mm)
- Storage Memory: Samsung V-NAND 3bit MLC
- Cache Memory: Samsung 2 GB Low Power DDR4 SDRAM
- Capacity
2,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
- Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
- Weight: Apporx. 46.0g Weight
- Controller: Samsung MKX Controller
Special Feature
- TRIM Support: TRIM Supported
- S.M.A.R.T Support: S.M.A.R.T Supported
- GC (Garbage Collection): Auto Garbage Collection Algorithm
- Encryption Support: AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
- WWN Support: World Wide Name supported
- Device Sleep Mode Support: Yes
Performance
- Sequential Read
Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
- Sequential Write
Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Read (4KB, QD32)
Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Write (4KB, QD32)
Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Read (4KB, QD1)
Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Write (4KB, QD1)
Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Environment
- Average Power Consumption (system level)
Average: 2.5 W *Maximum: 4.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
- Power consumption (Idle)
Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
- Allowable Voltage: 5V ± 5% Allowable voltage
- Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
- Operating Temperature: 0 - 70 ℃ Operating Temperature
- Shock: 1,500 G & 0.5 ms (Half sine)
Sofware
- Management SW
Magician Software for SSD management, Data Migration Software for SSD upgrade
Warranty
- 5 Years Limited Warranty or 1,200 TBW Limited Warranty
