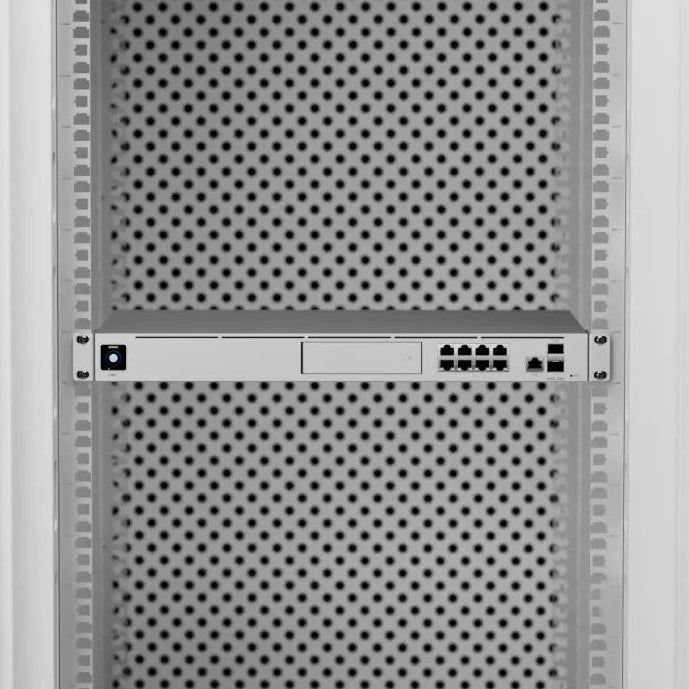

The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).
Highlights:
- Includes full UniFi application suite for device management
- 3.5+ Gbps routing
- Integrated 8-port PoE/PoE+ switch
- (1) 10G SFP+, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE
- (1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports
- 1.3" touchscreen
- 128 GB SSD & 3.5" HDD bay
Specifications:
- Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
- Weight: 4.95 kg (10.9 lb)
- Enclosure materials: Aluminium CNC, SGCC steel
- Mount material: SGCC steel
- Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
- System memory: 4 GB DDR4
- On-board storage: 16 GB eMMC ; Integrated 128 GB SSD
- Management interface Ethernet ; Bluetooth
- Networking interface (8) LAN: GbE RJ45 ports ; (1) WAN: 2.5 GbE RJ45 port
- SFP+ interface (1) LAN: 10G SFP+ ; (1) WAN: 10G SFP+
- PoE interface (6) PoE (Pair A 1, 2+; 3, 6-); (2) PoE+ (Pair A 1, 2+; 3, 6-)
- IDS/IPS throughput: 3.5 Gbps*
*Measured with iPerf3
- Power method: (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 3.94A
- Power supply: AC/DC, internal, 240W
- Supported voltage range: 100—240V AC
- Max. power consumption: 50W (Excluding PoE output)
- Max. PoE wattage per port by PSE: PoE: 15.4W ; PoE+: 30W
- Voltage range PoE mode: PoE: 44—57V ; PoE+: 50—57V
- ESD/EMP protection: Air: ± 15kV, contact: ± 8kV
- LCM display: (1) 1.3" touchscreen
- Button: Factory reset
- Operating temperature: -10 to 40° C (14 to 104° F)
- Operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
- LEDs:
Ethernet White: link/activity
SFP+ White: link/activity
HDD White: disk activity ; Amber: disk error
RPS Blue: ready
